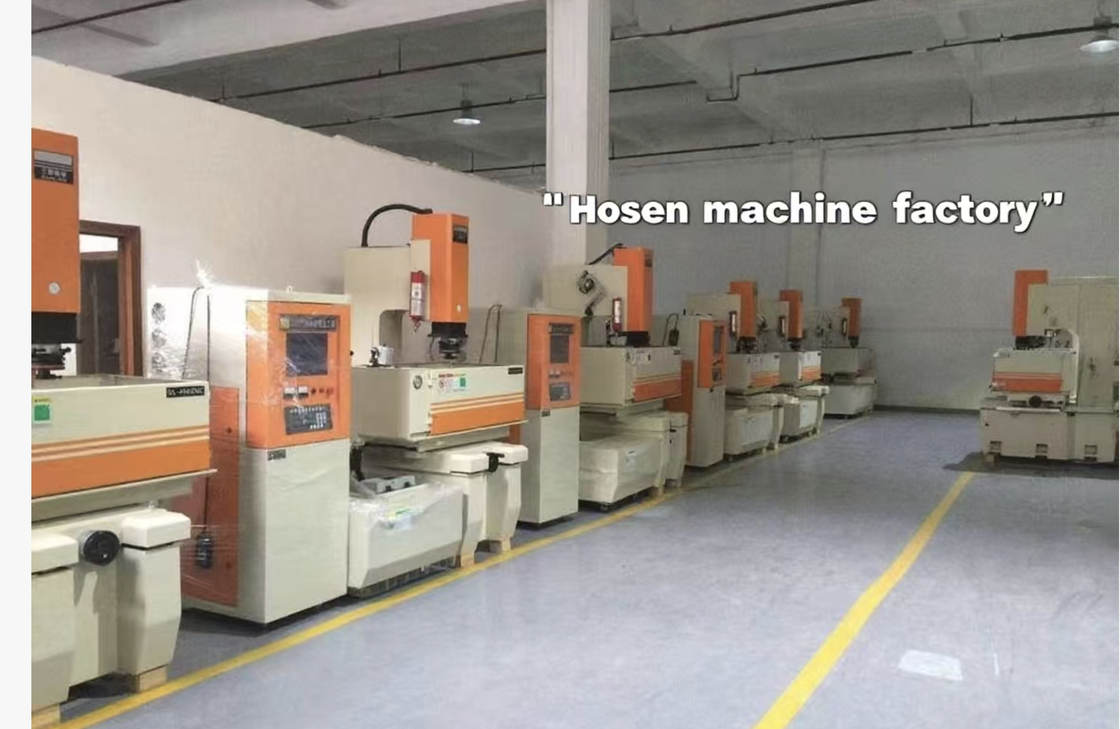

ZNC350 Die Sinking Machine Customized EDM Spark Cnc Electric Discharge Edm factory
Product Details:
| Place of Origin: | China |
| Brand Name: | hosen |
| Model Number: | znc350 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | good price |
| Packaging Details: | wooden box |
| Delivery Time: | 1-7working day |
| Payment Terms: | T/T |
| Supply Ability: | 5000set /per month |
|
Detail Information |
Product Description
Main Feature-EDM Die Sinker-ZNC 350
1. Depth desigh for Positive and Negative coordinate processing
2. Z Equipped with High Precise Taiwan ball screw.
3. Adaptive EDM control
4. Regular high-speed lift and carry the knife blade height control
5. Spindle position control, the discharge gap detection
6. ZNC system, manual control box operation
7. Z-axis AC servo system
8. Roughness: <Ra 0.3µm
9. 3 axis DRO Minimum drive unit 5 um
2. Z Equipped with High Precise Taiwan ball screw.
3. Adaptive EDM control
4. Regular high-speed lift and carry the knife blade height control
5. Spindle position control, the discharge gap detection
6. ZNC system, manual control box operation
7. Z-axis AC servo system
8. Roughness: <Ra 0.3µm
9. 3 axis DRO Minimum drive unit 5 um
| ITEM | ZNC350 | ZNC450 | ZNC540 | ZNC650 | ZNC750 | |
| Table Size | mm | 600x350 | 700x400 | 800x400 | 1000x600 | 700x450 |
| XY Travel | mm | 350x250 | 400x350 | 500x400 | 600x500 | 700x600 |
| Spindle Servo Travel | mm | 180+200 | 200+200 | 250+300 | 280+300 | 300+350 |
| Max.Table Load | kgs | 800 | 1000 | 1300 | 2500 | 2800 |
| Max.Electrode Load | kgs | 120 | 150 | 150 | 220 | 250 |
| Max.Work Current | A | 50 | 50 | 75 | 90 | 90 |
| Max.Work Speed | mm3/min | 300 | 400 | 500 | 600 | 600 |
| Electrode Wear Ratio | <0.2% | <0.2% | <0.2% | <0.2% | <0.2% | |
| Best Roughness | um | <0.3 | <0.3 | <0.3 | <0.3 | <0.3 |
| Oil Work Tank | mm | 900x500x400 | 1370x670x450 | 1400x700x500 | 1800x900x600 | 1800x900x600 |
