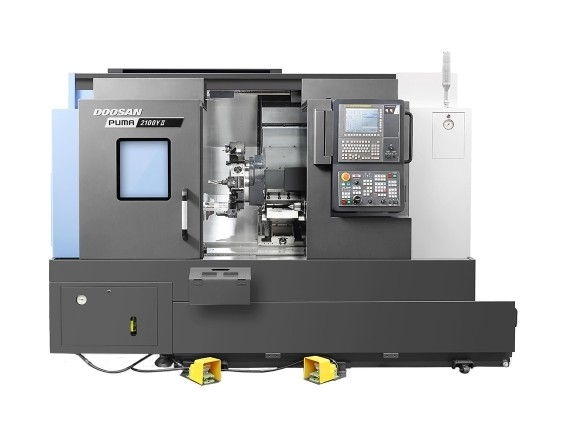

Boost Your Production with the High Speed and Power of Doosan Mill Turn Centers Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | doosan |
| Model Number: | PUMA2001Y |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Waterproof iron box |
| Delivery Time: | 60-90days |
| Payment Terms: | T/T |
| Supply Ability: | per your order quantity |
|
Detail Information |
Product Description
DN Solutions (formerly Doosan Machine Tools) high performance lathe series. Designed for heavy and intermittent cutting, accurate production, and premium surface finishes, this series has a wide variety of models with chuck sizes ranging from 8”-21”, turning lengths up to 120", and options for sub-spindles, y-axis, and milling capabilities. This Series has a box guideway structure which prevents vibration and gives it secure dynamic rigidity. It has the highest spindle speed in its class and also delivers powerful cutting capabilities.
Machine Size & Weight
|
Length
|
3175 mm (125 in)
|
|
Height
|
2163 mm (85 in)
|
|
Width
|
1945 mm (76.5 in)
|
|
Weight
|
5,550 kg (12,235 lbs.)
|
Tooling (Milling)
|
Rotary Tool Speed
|
5000 rpm
|
|
Rotary Tool Power
|
5.5 kW (7.5 Hp)
|
|
Rotary Tool Torque
|
47.1 Nm (34.7 ft-lbs)
|
Spindle
|
Chuck Size
|
8 in
|
|
Speed
|
5000 rpm
|
|
Power
|
22 kW (30 Hp)
|
|
Torque
|
358 Nm (264 ft-lbs)
|
|
Travel Distance X-axis
|
260 mm (10.2 in)
|
|
Travel Distance Y-axis
|
105±52.5 mm (4.1±2.1 in)
|
|
Travel Distance Z-axis
|
590 mm (23.2 in)
|
|
Rapid Traverse X-axis
|
30 m/min (1181 in/min)
|
|
Rapid Traverse Y-axis
|
10 m/min (394 in/min)
|
|
Rapid Traverse Z-axis
|
30 m/min (1181 in/min)
|
|
Rapid Traverse C-axis
|
200 rpm
|
Capacity
|
Max Turning Diameter
|
⌀406 mm (16 in)
|
|
Max Turning Length
|
520 mm (20.5 in)
|
|
Through Hole Diameter
|
⌀66 mm (2.6 in)
|
Tooling
|
Shank
|
BMT-55
|
|
Turret Stations
|
12
|
|
Boring Bar Diameter
|
⌀40 mm (1.5 in)
|
